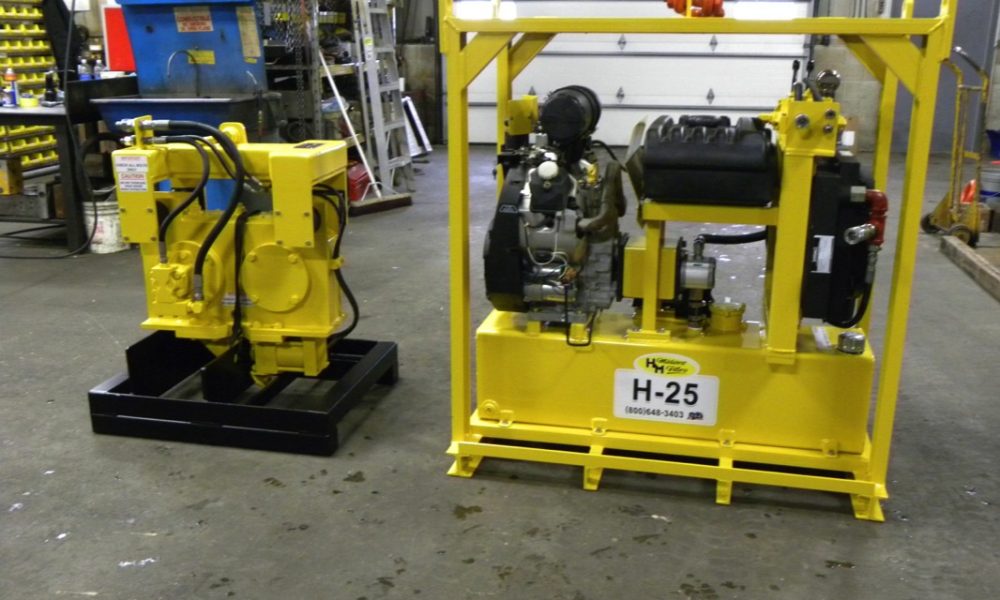

Model H-25

Worldwide vibratory equipment, sales and service Made in the USA.

Download the H-25 Spec Sheet
stacks_image_207
stacks_image_1431

Vibrator Specifications

  • Hydraulic — Type
  • 20 — Hydraulic Horsepower
  • 3/8 inch — Amplitude
  • 85 in. lbs. — Eccentric Moment
  • 15 ton — Pile Clamping Force
  • 39 inches — Height with Clamp
  • 33 inches — Length
  • 10 inches — Throat Width
  • 950 lbs. — Weight with Standard Clamp

Power Pack Specifications

  • Kohler — Engine
  • 25 — Rated HP
  • 10 gallons — Fuel Tank Capacity

Aenean lacinia bibendum nulla sed consectetur. Donec sed odio dui. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Vestibulum id ligula porta felis euismod semper.



Vibrator Specifications

  • Hydraulic — Type
  • 20 — Hydraulic Horsepower
  • 2,000 — Frequency
  • 3/8 inch — Amplitude
  • 85 in. lbs. — Eccentric Moment
  • 15 ton — Pile Clamping Force
  • 39 inches — Height with Clamp
  • 33 inches — Length
  • 10 inches — Throat Width
  • 950 lbs. — Weight with Standard Clamp

Power Pack Specifications

  • Kohler — Engine
  • 25 — Rated HP
  • 10 gallons — Fuel Tank Capacity
  • 25 gallons — Hydraulic Tank Capacity
  • 16 G.P.M. — Eccentric Pump Capacity
  • 10 micron — Hydraulic Filters
  • 54 inches — Length
  • 24 inches — Width
  • 34 inches — Height
  • 700 lbs. — Weight
